Nguồn gốc:
Hunan, Trung Quốc
Hàng hiệu:
Stron

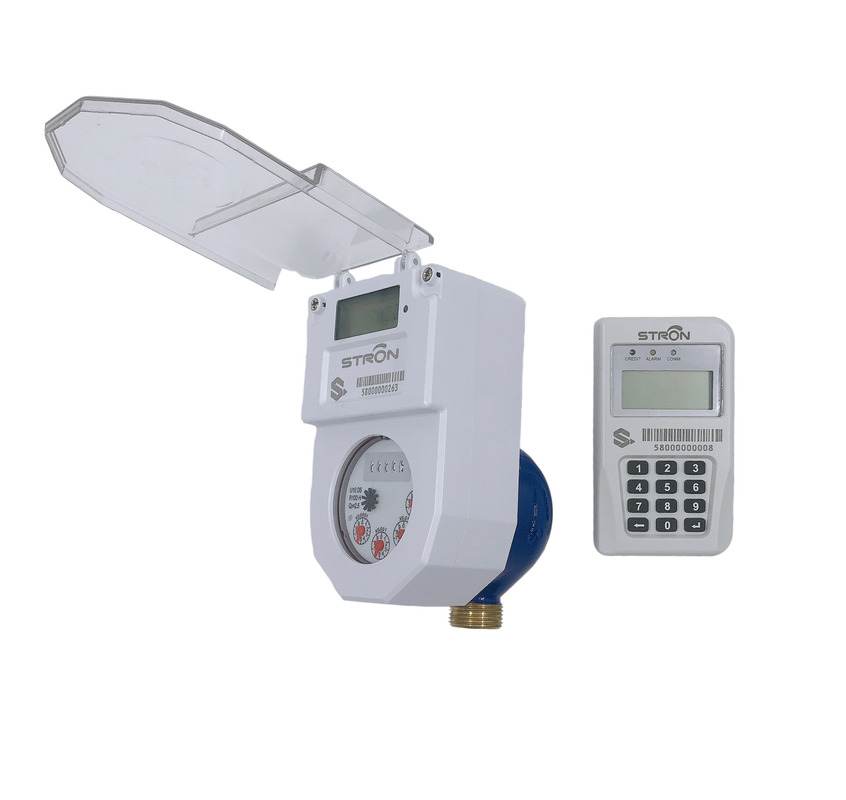

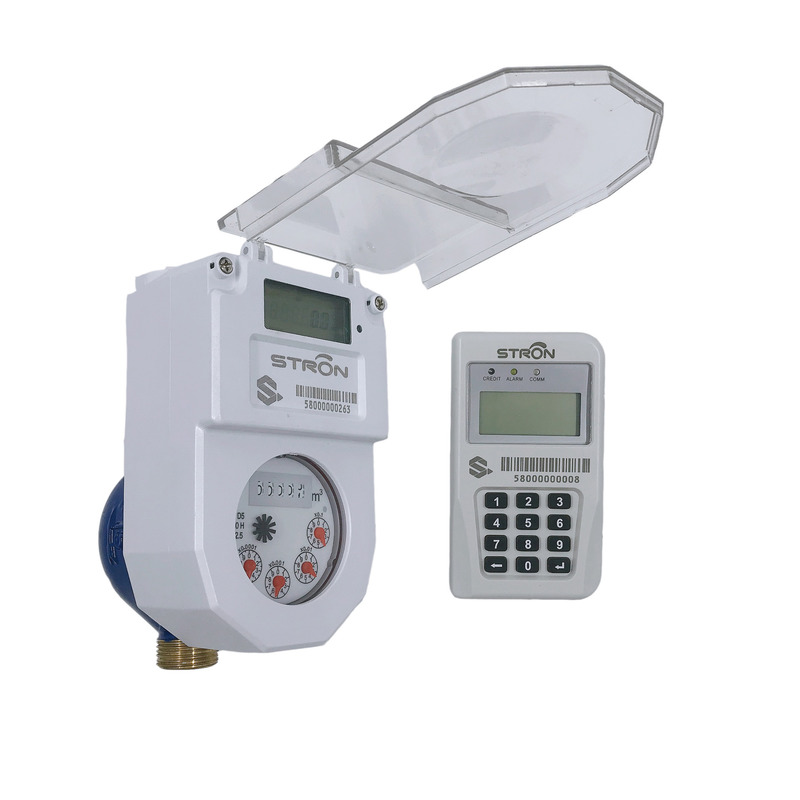

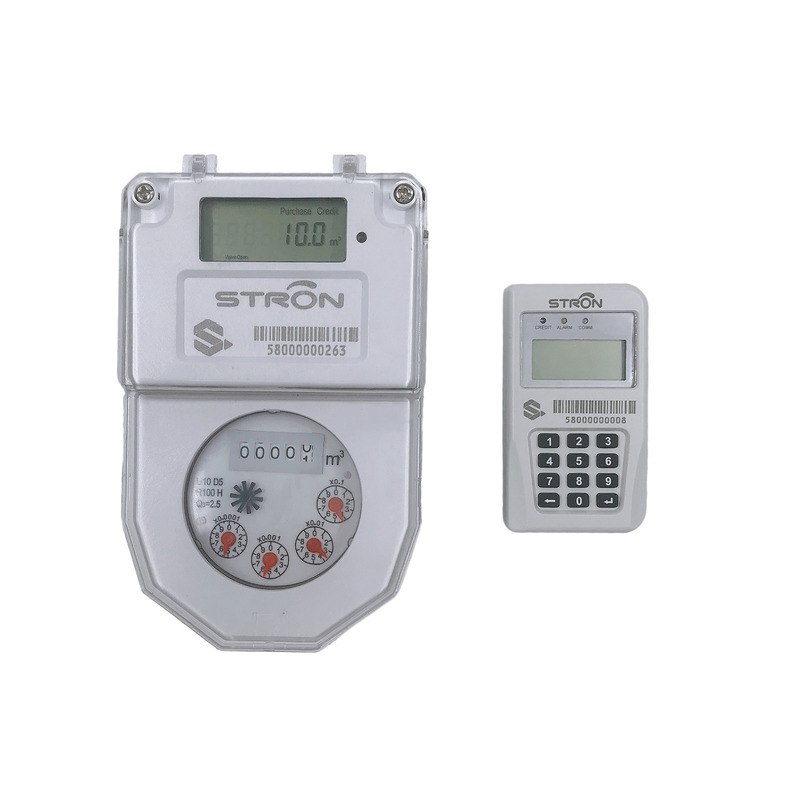

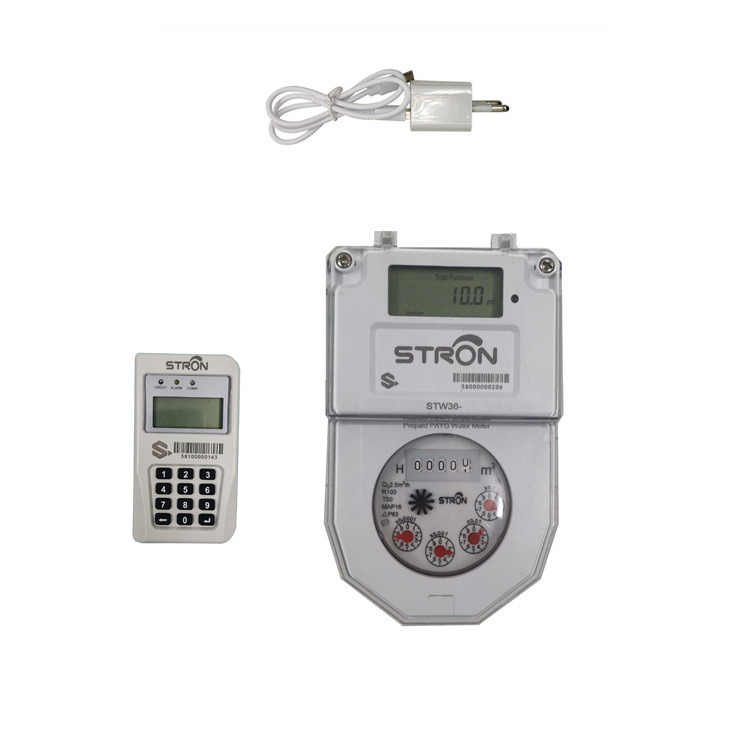

Low price, high quality: The STW36-A Prepaid water meter offers exceptional value for Africa, combining smart technology with affordability due to reduced production and logistics costs.
Accuracy: Achieves R160 precision (optional) with built-in Anti-Tamper function that automatically closes valves when detecting magnetic fields or cover openings. Complies with STS standard and features IP68 waterproof protection.
Advanced power management features:
Free Stronpay water vending software integrates with mobile payment platforms (M-PESA, Alipay, MTN, Airtel) enabling remote top-ups. Two recharge methods available:
LoRa-RF technology enables:
| Size | DN15mm 1/2" | DN20mm 3/4" | DN25mm 1" |
|---|---|---|---|
| Overload flow rate Q4 | 3.13 | 5 | 7.87 |
| Permanent flow rate Q3 | 2.5 | 4 | 6.3 |
| Transitional flow rate Q2 | 0.04 | 0.064 | 0.1 |
| Minimum flow rate Q1 | 0.025 | 0.04 | 0.063 |
| Ratio "R" Q3/Q1 | 100 | 100 | 100 |
| Maximum working pressure | 16bar | 16bar | 16bar |
| Maximum pressure loss | 0.6bar | 0.6bar | 0.6bar |
| Maximum reading | 99999 | 99999 | 99999 |
| Max temperature | 50°C | 50°C | 50°C |
| Max permissible error (MPE) | Q1≤Q≤Q2,MPE=±5% Q2≤Q≤Q4,MPE=±2% |
Q1≤Q≤Q2,MPE=±5% Q2≤Q≤Q4,MPE=±2% |
Q1≤Q≤Q2,MPE=±5% Q2≤Q≤Q4,MPE=±2% |
| Function | Details |
|---|---|
| Prepayment | STS Standard, recharge by 20-digit TOKEN |
| Low credit alarm | Configurable alarm threshold |
| Prepaid/post-paid switch | Flexible billing modes |
| Non-return valve | Prevents back-flow |
| Anti-tamper | Automatic valve closure on tamper detection |
| Step tariff | Configurable pricing tiers |
| Overdraft collection | Daily or monthly collection options |
| Communication | Optional LoRa-RF or Bluetooth 4.0 |
| Information inquiry | Check credit, purchases via short codes |
| Size | DN15 1/2" | DN20 3/4" | DN25 1" |
|---|---|---|---|
| Length | 165/190 | 190 | 225/260 |
| Width | 99 | 99 | 103 |
| Height | 104 | 106 | 114 |
| Connecting thread | G3/4B | G1B | G1-1/4B |
